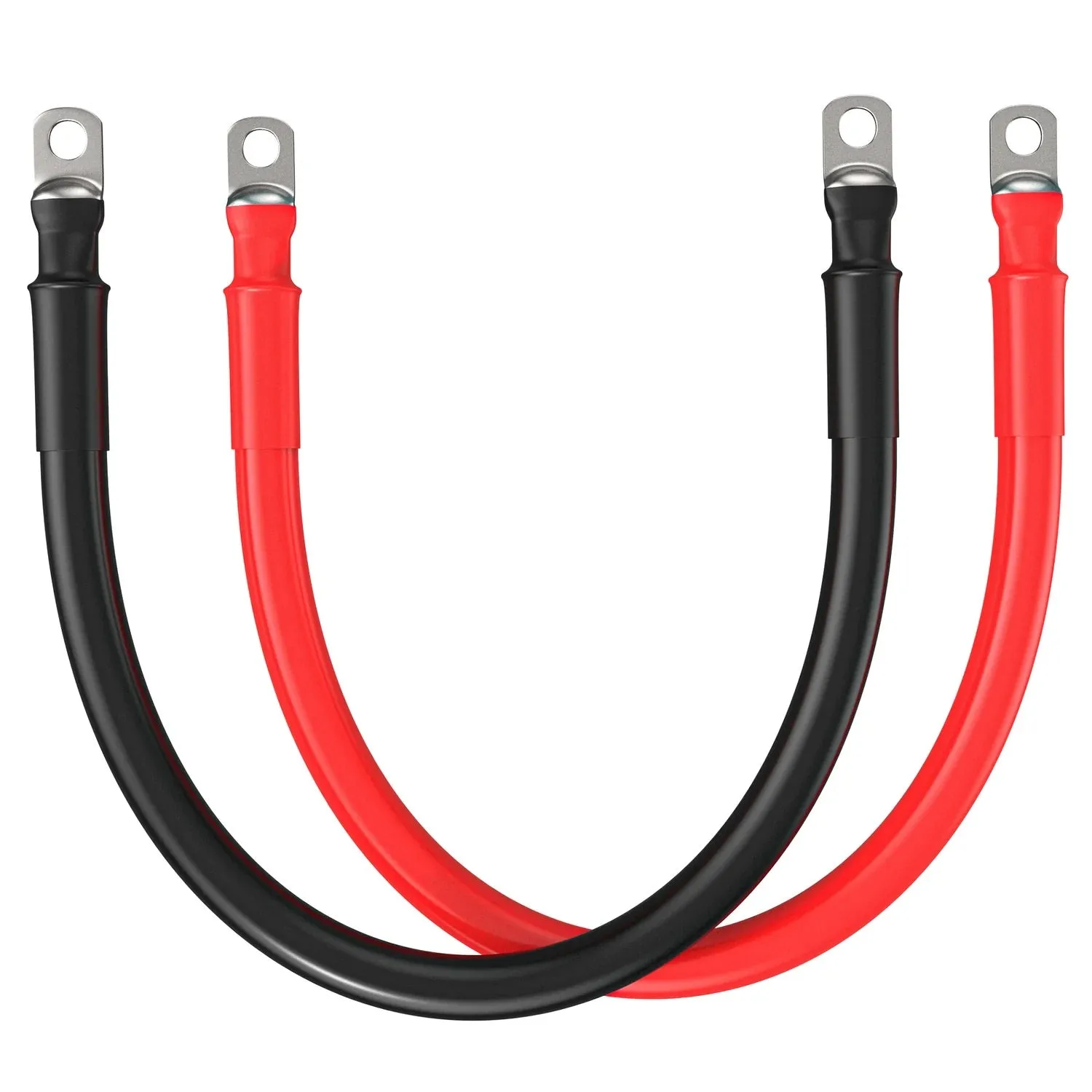

The Rich Solar 2 Gauge Black and Red Pure Copper Inverter Battery Cables Are Your Key To Unlocking The True Potential Of Your Battery Bank
For demanding off-grid applications, reliable and efficient power transfer is paramount. These heavy-duty cables are meticulously crafted with 100% pure, high-grade copper, ensuring unmatched conductivity, minimal voltage drop, and superior performance even under the most challenging conditions.
Inverter, charger, or battery cables are great for replacement automotive cable, motorcycle, RV, camper, travel trailer & other vehicle wiring applications, grounding cables, golf carts, car audio stereo amplifiers, solar, power inverters, and many other DC applications.
Rich Solar's 2 gauge AWG battery cables are not only sturdy & flexible, but they also feature 665 strands of 100% pure copper cable and lugs pre-assembled on both ends.
Rich Solar 2 Gauge (AWG) Black and Red Pure Copper Inverter Battery Cables Features
Cable Features:
- Polyvinyl-chloride (PVC) insulation
- 90°C MTW – UL & CSA 105°C
- Voltage rating: Up to 600 volts
- VW-1 & moisture resistant
- ROHS Compliant
- UL Approved
Heat Shrink Features:
- Shrink ratio: Approximately 3 to 1 at 90°C
- Operational temp. range: -55°C to 135°C
- Dielectric strength: 500 V/mil (197 kV/cm)
- Volume resistivity: 1014 ohm-cm
- Tensile strength: 1500 psi (141 kg/cm2)
What's In The Box
- 2 Gauge (AWG) Red & Black (Set)
25-Year Warranty
- Rich Solar provides a 25-year output warranty for this solar panel extension cable.
Rich Solar 2 Gauge (AWG) Black and Red Pure Copper Inverter Battery Cables Specifications
- 100% Pure Copper!
- Terminals: 5/16'' Both Ends.
- Length: 1 FT, 1.5 FT, 2 FT, 3 FT, 4 FT, 5 FT, 6 FT, 8 FT, 10 FT.
- PVC insulated and professionally cut, crimped & heat shrunk
- Lifetime Crimp Warranty
